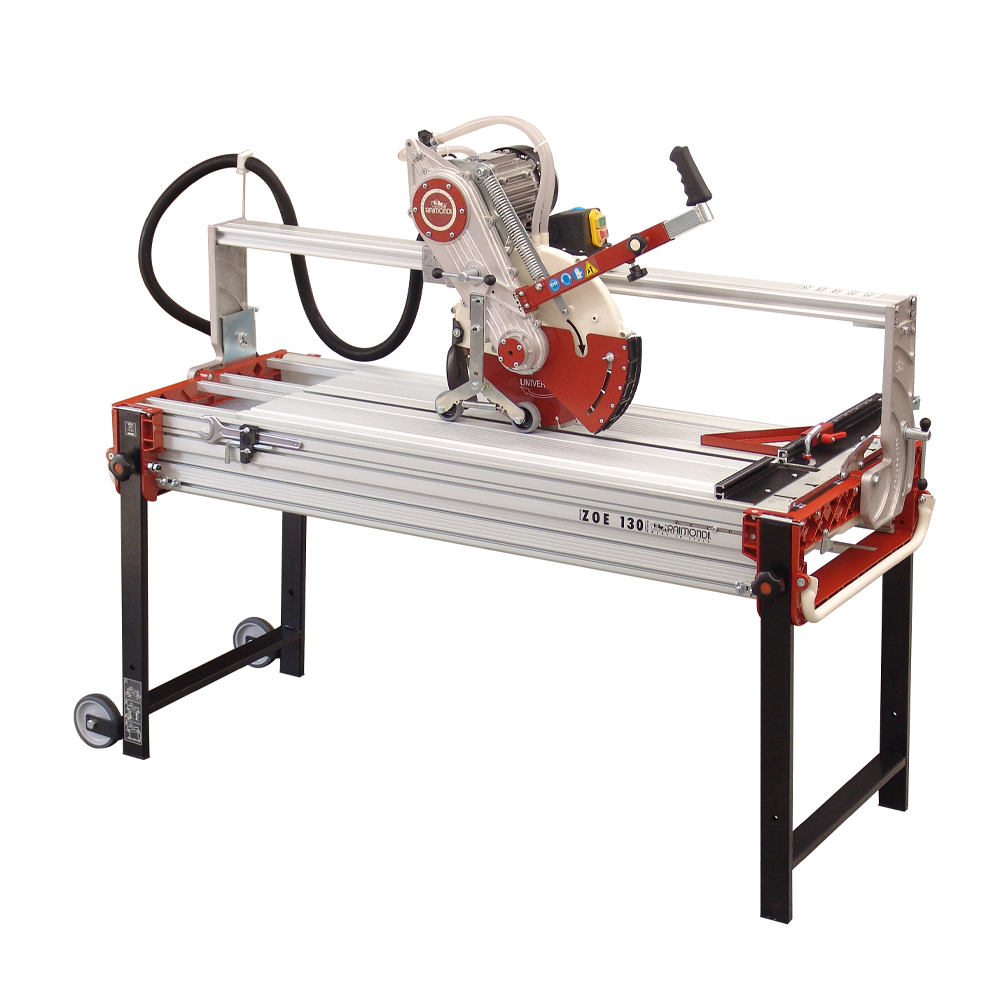

Raimondi Zoe 130 Advanced Electric Wet Saw

Raimondi Zoe 130 Advanced Electric Wet Saw

For cutting granite, marble, porcelain, single and double fired, bricks, cement, etc…

Size: 1300mm

Features

Maximum length of cut 130 cm (51 1/8”)
Maximum thickness of cut: 120 mm (4 3/4”) in single pass; 240 mm (9 1/2”) in double pass
Maximum blade diameter Ø 360 mm (14”); smallest blade diameter Ø 300 mm (12”)
Adjustable cutting depth
Tilting motor assembly for bevel cuts from 0° to 45°
Belt-driven system optimizes motor torque and cutting capacity
The gear ratio of motor to disc is 1,4 ÷ 1. Drive belt type poly V
Cast and extruded aluminium framework
Easy-to-remove polypropylene tank for easy cleaning. Capacity: 38 lt (10 Gal)
Heavy-duty water pump and (2) jet nozzles provide superior blade cooling
Sliding motor assembly with cast aluminium housing provided with 4 re-adjustable pulleys (double bearings). Extruded aluminium rail
Re-adjustable square for long-lasting precision
Telescopic legs are provided with safety devices to prevent collapsing
The pivoting blade guard remains parallel with the tile to ensure maximum cutting depth
The floating blade guard remains in contact with the tile to provide extra safety during operation
Equipped with: segmented diamond disc Ø 360 mm (14”). Wheels kit for easy transport
Pressure device to hold tile. Key kit, wrench, manual
